TBA
Guardian Telecom TBA Talk/Back Amplifiers are designed for safe, reliable and cost-effective communication. They provide easy to operate paging with the versatility of hands-free slave speakers.
Utilizing explosion proof slave speakers, Talk/Back units are very useful in hazardous areas where hands-free communication is required.
Guardian’s TBA Talk/Back systems provide reliable point-to-point and point-to-multipoint communication in areas such as on drilling rigs between drill cabin/drill floor and monkey board, plus moon pool, mud tanks, etc.
TBA Talk/Back systems are also used extensively on ships and off-shore platforms where hands-free communication is required from slave-operator end.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1259267
CSA (”C” and “US”) 1259267
For EXP, MLX 300 & MLX 350 Models
Class I, Div. 1, Groups B, C and D;
Class II, Div. 1, Groups E, F and G
• Canada: Class l Zone 1 Ex d llB+H2 T5
• United States: Class I Zone 1 AEx d(ia) llB+H2 T5; Class II Zone 21
For EXP-A, EXP-TBA, EXP-TBB, MLX 330, MLX 331, MLX 332 & MLX 300 Models
Class I, Div. 1, Groups B, C and D;
Class II, Div. 1, Groups E, F and G
• Canada: Class l Zone 1 Ex d llB+H2 T5
• United States: Class I Zone 1 AEx d llB+H2 T5; Class II Zone 21
CLASS 4818 02 – SIGNAL APPLIANCES – Audible – For Hazardous Locations
CLASS 4818 82 – SIGNAL APPLIANCES – Audible – For Hazardous Locations Certified to US Standards
CSA (”C” and “US”) Certificate 1259267
Product Features
- Easy master/slave operation
- Only one amplifier required for master/slave(s) communication
- 2, 3, 4 or 5 channel versions available
- Primary slave can be hands free (TBA20/30/40/50) or Push-to-Talk (TBA21/31/41)
- External microphone or option to use master speaker as microphone
- Hand or foot switch (not included) used with master to activate paging
- Post announcement tone from master to slave option
- 120/230VAC or 24VDC powered (For details contact a Guardian Telecom representative)
- Attenuation of master speaker when paging to prevent feedback
- Seven models to select from
- TBA20 2 Channel: Master/Slave, Primary slave can be hands free – Order number: P8600
- TBA21 – 2 Channel: Master/PTT Slave, Primary slave can be Push-to-Talk – Order number: P8605
- TBA30 – 3 Channel: Master/2 Slaves, Primary slave can be hands free – Order number: P8601
- TBA31 – 3 Channel: Master/2 Slaves, Primary slave can be Push-to-Talk [Primary being PTT] – Order number: P8606
- TBA40 – 4 Channel: Master/3 Slaves, Primary slave can be hands free – Order number: P8602

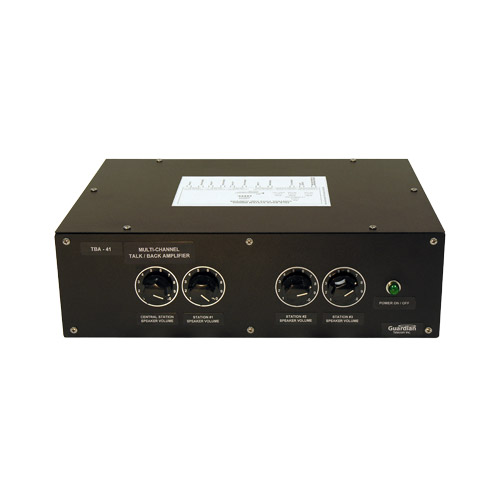

- TBA41 – 4 Channel: Master/3 Slaves, Primary slave can be Push-to-Talk [Primary being PTT] – Order number: P8607
- TBA50 – 5 Channel: Master/4 Slaves, Primary slave can be hands free – Order number: P8603
