PTJ

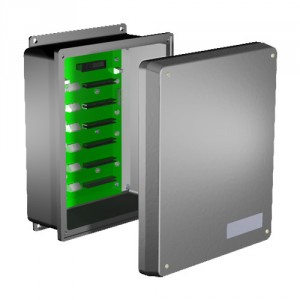

Guardian’s PTJ Terminal Junction Box provides a convenient method of branching out up to five legs of Page/Talk system wiring from one location and includes one separate system test port.
The PTJ Terminal Junction Box has CSA, NEMA 4X and IEC IP66 ratings.
Manual
Specifications
Certifications
Images
Standards Compliance
CSA (”C” and “US”) 1289924
CSA (”C” and “US”) 1289924
For PSA, PTI, PTJ & PTO Models
• Canada:
Class I, Division 2, Groups A, B, C and D;
Class II, Groups E, F and G; T6
• United States:
Class I, Divison 2, Groups A, B, C and D;
Class II, Groups E, F and G; Class I Zone 2, T6
For PPA, PPR, PTA, PTR, PTD & PDA Models
• Canada:
Class I, Division 2, Groups A, B, C and D; T6
• United States:
Class I, Divison 2, Groups A, B, C and D; Class I Zone 2, T6
CLASS 4818 02 – SIGNAL APPLIANCES – Audible – For Hazardous Locations
CLASS 4818 82 – SIGNAL APPLIANCES – Audible – For Hazardous Locations Certified to US Standards
CSA (”C” and “US”) Certificate 1289924
Product Features
- Capacity to terminate six (1 in/5 out) cables to Combicon connectors
- Separate test port
- Fiberglass reinforced polyester enclosure, self extinguishing and halogen free
- NEMA 4X and IEC IP66 ratings
- CSA enclosure rating – File #1289924
- Temperature range -58˚ to +300˚F ( -50˚ to +150˚C )
- Mounts to any vertical surface
- Dimensions H x W x D 12.8” x 10.7” x 5.6” (325 x 272 x 142 mm)
- Wiring access – solid surfaces for punching holes to customer requirements
- Four stainless steel captive screws secure the cover to the base by means of four threaded brass inserts inset in the base
- Order number: P8700
